DR7915 Test with DR40x9 support 2.4G 5G at same time

By admin Date of issue: Aug 12,2022

DR7915 is a WiFi6 Mini PCIe Module 2T2R based on Mediatek MT7915 DAN which is a WiFi Mini PCIe single chip which supports 1800 Mbps PHY rate with PCIe2.1. It fully complies with IEEE 802.11ax/ac and IEEE 802.11 ac/a/b/g/n standards, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance.



Optimized RF architecture and base band algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient offload engine and hardware data processing accelerators which completely offloads Wi-Fi task of the host processor. MT7915DAN is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance.



MT7915DAN is designed to support high data throughput over WiFi. The host interface PCIe are integrated to provide stable bandwidth between the host platform and MT7915DAN.



Features



2T2R in 2.4G+2T2R in 5G with support of up to 573+1201Mbps PHY rate

Supports 20, 40, 80 channels

HE MCS0-11 BW20/40/80MHz with Nss=1~2

Short Guard Interval

Space-time block code (STBC)

Low Density Partiy check (LDPC)

Support digital pre-distortion to enhance PA performance

Smoothing (channel estimation) extension to MIMO case

DFS radar detection

Embedded ARM Cortex R4 processor for full host CPU offload

Embedded 32-bit RISC microprocessor

Support STBC, LDPC, TX Beamformer and RX Beamformee

Decoded BW20/40/80 up to 4×2 MU materix feedback

Greenfield, mixed mode, legacy modes support

Highly integrated RF with 40nm low power process

Noise mitigation:

Supports background scan function for fast channel switching

Supports spectrum analysis for non-Wi-Fi signals



Intelligent power saving

WFA WMM, WMM PS (QoS)

Integrate high efficiency internal 4G/5G PAs

Intelligent Calibration (iCal) reduces the production time

Integrate high efficiency internal 4G/5G PAs



Application



Let's have a look at the screenshots by using Wallys #DR4019  IPQ4019 IPQ4029 chipset router board plus DR7915 DBDC Wlan module combo.

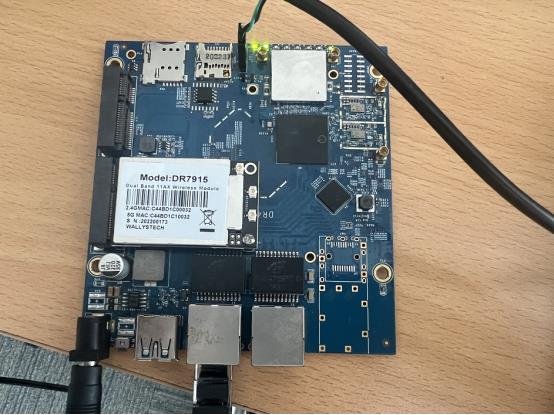

When the DR7915 is inserted into the DR40X9 board, there are 4 radios that can work at the same time, and it can be used as a soft router

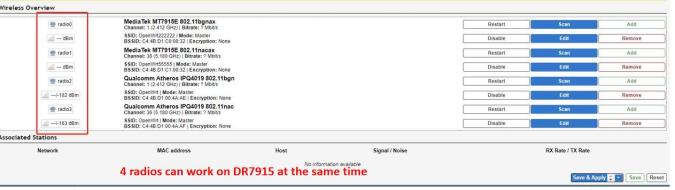

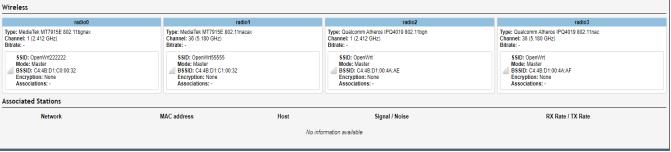

As we can see, by using this combo,there will be 4 radios working at the same time,and you can configure each radio into AP or STA mode as you wish.

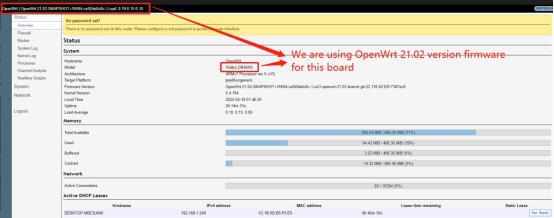

DR7915 can work on OpenWrt 21.02 version OS directly, no need to install the driver to support this MTK chipset.

We guess it would be a smart option as well to select #DR7915 for applications which require Multi-radios,soft router, Mesh,bonding etc...















As we can see, by using this combo,there will be 4 radios working at the same time,and you can configure each radio into AP or STA mode as you wish.

DR7915 can work on OpenWrt 21.02 version OS directly, no need to install the driver to support this MTK chipset.

We guess it would be a smart option as well to select #DR7915 for applications which require Multi-radios,soft router, Mesh,bonding etc...
