Features

■ Qualcomm IPQ5322 Quad-Core Cortex-A53 @ 1.5GHz processor.

■ 2x2 on-board 2.4GHz radio, up to 573Mbps physical data rate.

■ 2x2 5G & 2x2 6G MU-MIMO, up to 8,647Mbps physical data rate;

■ Flexible Wi-Fi 7 radio configurations via 2x (NGFF)

■ 1 x 2.5Gbps ethernet port, 1x 10Gbps SFP,1 x 2.5Gbps poe out

Applications

■ 802.11be MU-MIMO OFDMA Access Point.

■ Internet of Things (IoT).

■ HD streaming and gaming.

Absolute Maximum Rating

Parameter	Rating	Unit
Supply Voltage	48V	V
Environmental Temperature Operating	-20ºC to 70ºC	ºC
Environmental Temperature Storage	-40ºC to 90ºC	ºC
Environmental Humidity Operating	5% to 95% (non-condensing)	%
Environmental Humidity Storage	Max. 90% (non-condensing)	%

Hardware Specifications

Symbol	Parameter
Chipset	Qualcomm IPQ5322 Quad-Core Cortex-A53 @ 1.5GHz processor ‘Miami’ Series
Reference Design	Qualcomm AP.MI01.2
System Memory	1GB, DDR4 16-bit ( 1x16-bit) interface
Flash	NAND Flash: 512MB NOR Flash: 8MB
Wireless	On-board 2x2 2.4GHz MU-MIMO 802.11b/g/n/ax/be, max 24dBm per chain; Onboard 2x2 5Ghz 2x2 6Ghz QCN9274/QCN6274 wifi7 module; 2x MMCX-N connectors(5G); 2x MMCX-N connectors(6G)
Frequency Range	2.412~2.472GHz; 5GHz: 5.15~5.825GHz; 6GHz: 5.925GHz-7.125GHz
PeakGain	3dBi for 2.4GHz
Modulation Techniques	OFDMA:BPSK,QPSK,16-QAM,64-QAM,256-QAM,1024-QAM，4K-QAM

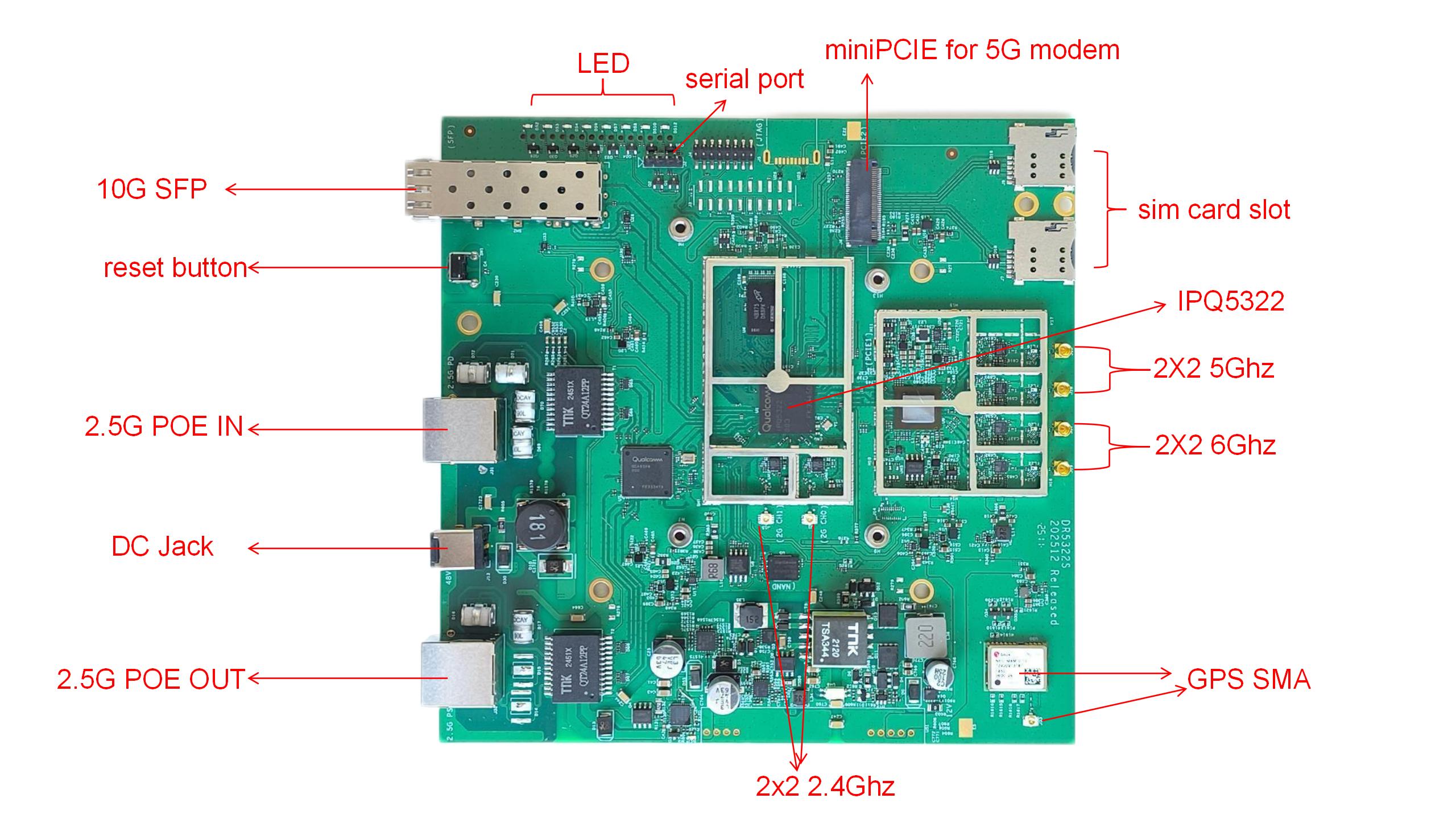

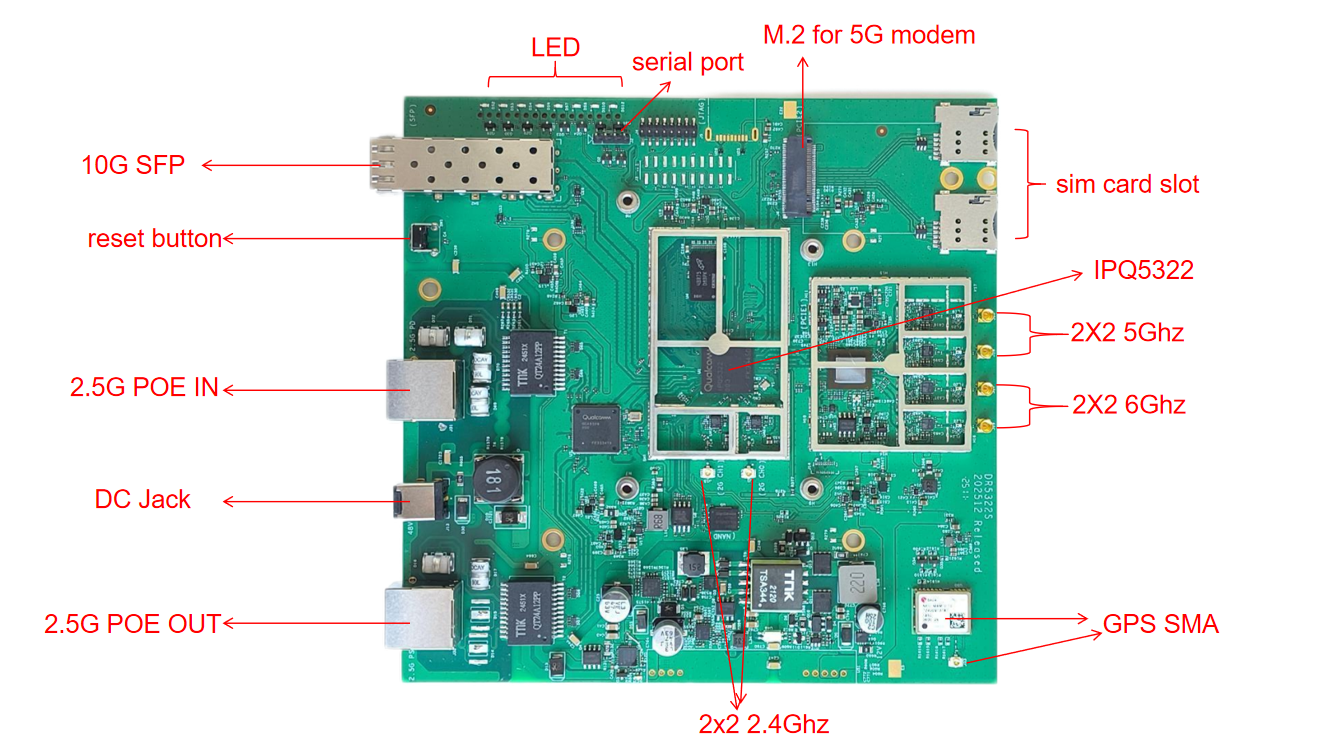

Interface	1 x 2.5Gigabit Ethernet LAN/WAN RJ45 Port; 1 x 2.5G poe out RJ45 Port; 1 x 10G SFP Port; 1 x JTAG 10Pin Connector; 2 x 4Pin Connector; 2 x UFL Connector; 1x RESET Button;
LTE	PWR，LAN1，LAN2，5G，6G，GPIOx，GPIOx，GPIOx
Power	1 x DC Jack Connector:48V; 802.3 11BT POE
PowerConsumption (Boardonly)	TBD
Certification	REACH & RoHS Compliance
