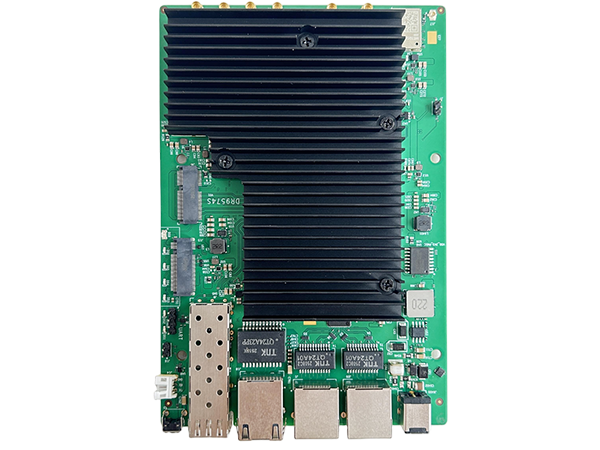

DR9574S

Features

▶ Qualcomm   IPQ9574   Quad-Core   ARM-A73   @ 2.2GHz processor.

▶ Qualcomm Atheros IPQ9574 for Industrial Grade;

▶ 2x2 on-board 2.4GHz radio,  up to 573.6Mbps physical data rate;

▶ 2x2 on-board 5GHz radio,  up to 2882Mbps, max 21dBm per chain;

▶ 2x2 on-board 6GHz radio,  up to 5765Mbps, max 19 dBm per chain;

▶ 2 x M.2 (NGFF) E Key Socket with PCIe 3.0;

▶ 2 x 2.5Gbps ethernet port, 1x 10Gbps ethernet port & POE;

▶ 1 x 10Gbps SFP;


Applications

▶ 802.11be support Access Point;

▶ 802.11ax MU-MIMO OFDMA Access Point;

▶ Internet of Things (IoT)

▶ HD streaming and gaming;




    • SPECIFICATIONS
    • SUPPORT&DOWNLOADS
        Product Description


      DR9574 based on IPQ9574 Chipset is an enterprise wireless module integrated with 2x2 MU-MIMO Wireless Module designed specifically to provide users with mobile access to  high-bandwidth video streaming, voice, and data transmission for office and challenging   RFenvironment in factories, warehouses establishment.



        Absolute Maximum Rating



      Parameter

      Rating

      Unit

      Supply Voltage

      24V ~ 48V (DC Jack)

      V

      Environmental Temperature Operating

      -20ºC to 70ºC

      ºC

      Environmental Temperature Storage

      -40ºC to 90ºC

      ºC

      Environmental Humidity Operating5% to 95% (non-condensing)%

      Environmental Humidity Storage

      Max. 90% (non-condensing)

      %



       Hardware Specifications



      Symbol

      Parameter

      CPU

      		Qualcomm-Atheros IPQ9574

      CPU Frequency

      		Quad-Core ARM-A73  @ 2.2GHz  processor ‘Alder’ Series

      System Memory

      		2GB (2x1GB), DDR4 32-bit (2x16-bit) interface

      Ethernet Port

      2 x 2.5Gbps ethernet port;

      1x 10Gbps ethernet port & POE;

      1x 10Gbps SFP;

      GPS

      Optional

      SGMII

      1x SGMII Interface

      UART

      		1x UART Interface

      wireless

      2x2 On-board 2.4GHz radio,up to 573.6Mbps physical Data Rate;

      2x2 On-board 5GHz radio,up to 2882Mbps physical Data Rate;

      2x2 On-board 6GHz radio,up to 5765Mbps physical Data Rate;

      Channel Spectrum Widths for WLAN

      Support 20/40MHz at 2.4GHz;

      Support 20/40/80/160MHz at 5GHz;

      Support 20/40/80/160MHz/320MHz at 6GHz;

      Host Interface

      2 x M.2 E Key interface with PCIe 3.0

      Antenna Cable / Port

      		6  x MMCX Connectors;
      Power

      DC Jack: 12V-52V DC power supply;

      POE:Active POE，802.3at/BT,48V passive POE;

      CertificationREACH & RoHS Compliance;

      ModulationTechniques

      		OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM,4096-QAM;
