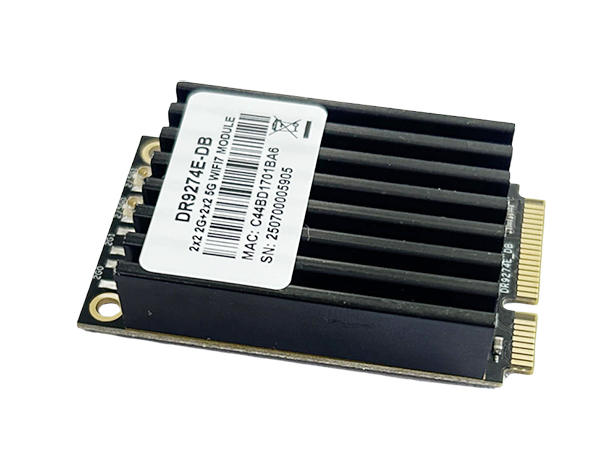

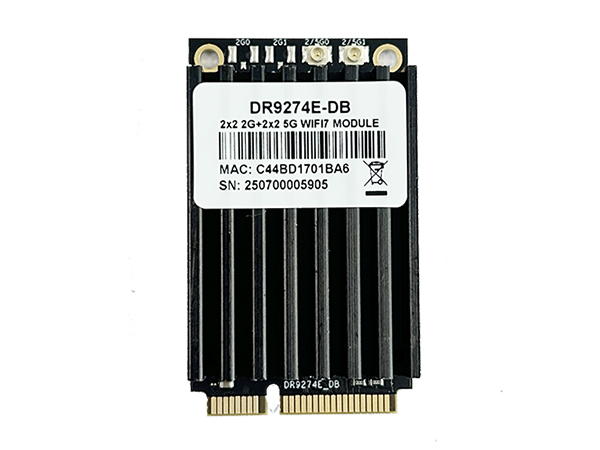

DR9274E-DB based on QCN9274/QCN6274 Chipset is an enterprise wireless module integrated with 2x2 2.4g&5G MU-MIMO Dual Band Wireless Module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RFenvironment in factories, warehouses establishment.
Symbol | Parameter |
Chipset | Qualcomm QCN6274 ‘Waikiki’ series for Commercial grade; Qualcomm QCN9274 ‘Waikiki’ series for Industrial grade; |
wireless | 2.4GHz 802.11a/n/ax/be, max 20 dBm per chain 5GHz 802.11a/n/ax/be, max 20 dBm per chain 2x2 U.FL Connectors |
Frequency Range | 2.4GHz: 2.412~2.482GHz 5GHz: 5.150~5.885GHz |
| wireless | 2×2 2.4GHz MU-MIMO, up to 1376Mbps physical data rate; 2 x 2 5G MU-MIMO, up to 5765Mbps physical data rate; |
Modulation Techniques | OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM,1024QAM, 4096QAM |
Bandwidth | Supports 20/40MHz at 2.4GHz Supports 20/40/80/160MHz at 5GHz |
Power Supply | 3.3V |
Interface | MiniPCIe Interface with PCIe 3.0 |
Environmental Temperature | Operating(Commercial Grade): -20°C to 70°C; Operating(Industrial Grade): -40°C to 85°C; |
Storage Temperature | Storage: -40°C to 90°C |
Environmental Humidity, Non-Condensing | Operating: 5% to 95%, Storage: Max. 90% |
Power Consumption | 9W Maxim |
Certification | REACH & RoHS Compliance |
Dimensions (W x H x D) in mm | 30 X 50.8 X 12.5 mm |
NO | Name | Mainchip |
1 | DR9274E-DB | QCN6274 |
2 | DR9274E-DBI | QCN9274 |
