Introduction

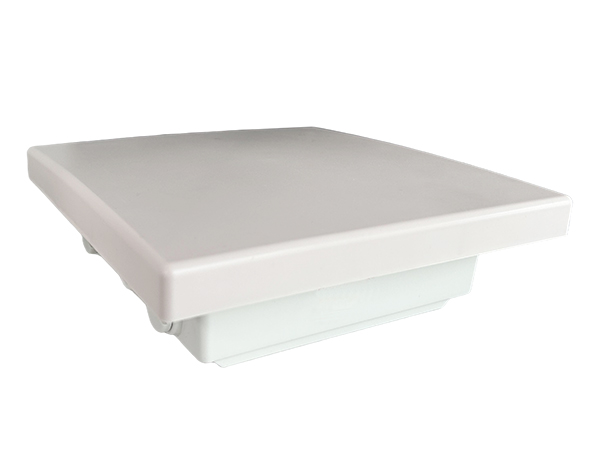

DRWave-1000 is outdoor wifi6 AP which including:

● 1 x DR5018S

● 1 x Enclosure.

● Antenna (DRA25 or DR5G17 options)

DR5018S options:

DR5018S---5G-5Ghz radio;

DR5018S-DB---2.4Ghz & 5Ghz radios;

Radios

Radio Frequency	5.020Ghz to 5.880Ghz
Throughput	2402Mbps(Phy data rate)
Channel Size	20Mhz,40Mhz,80Mhz,160Mhz
Waveform	Advanced OFDM 2x2 - Modulations – BPSK, QPSK, 16QAM, 64QAM, 256QAM,1024QAM
Maxim Output Power	27dbm perchain,30dbm combined
Sensitive（MCS0）	-93dbm @ 20Mhz -92dbm @ 40Mhz -90dbm @ 80Mhz -87dbm @160M

Features

Physical and Enviroment

Operating temperature	-40degC-70degC
Operating humidity	5 to 95% condensing
Outdoor Ingress Protection Rating	IP66
Approvals	FCC:Part 15B,Part 15C.247,Part15E.407 CE:EN300328,EN301893,EN50665,EN300386, EN55032,EN55035,EN301489-1/-17,EN62368 UKCA:Surge:GB/T 17626.5-2019,IEC61000-4-5,EN61000-4-5
Power	POE:Active POE，802.3at/BT,48V passive POE

Product Version

	P/N	Radio	Frequency	5G Antenna
1	DRWave-1000Pro	5Ghz	1G Ethernet & POE	19dbi
2	DRWave-1000Pro+	5Ghz,2.4G	1G Ethernet & POE	19dbi
3	DRWave-1000DE	5Ghz,2.4G	2.5G+1G Ethernet & POE	17dbi
4	DRWave-1000E	5Ghz	1G Ethernet & POE	17dbi
DRWave-1000Pro has 5G radio and 1x1G ethernet port and support PD feature; DRWave-1000Pro+ has 2.4G, 5G radio and 1x1G ethernet port and support PD feature; DRWave-1000DE has 2.4G,5G radio and 1x2.5G+1x1G ethernet ports and all support PD feature; DRWave-1000E has 5G radio and 1x1G ethernet port and support PD feature;
