Antenna
● DRA2G5G5D-A-B
Frequency Range：2.4~2.5&5.15~5.85GHz
Gain(peak)：5.0dBi(Max) Dual Band Dipole Antenna
● DR2G6G5D001
Frequency Range： 2.4~2.5&5.15~7.15GHz
Gain(peak)：5.0dBi(Max)
Enclosure:
● Dimension: 13 x 12.5 x 3.4 cm
● Aluminum alloy material
● Support Wallys' PCBA Mainboard

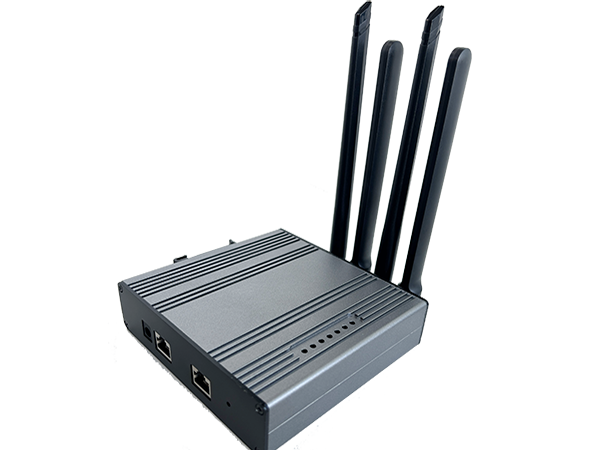

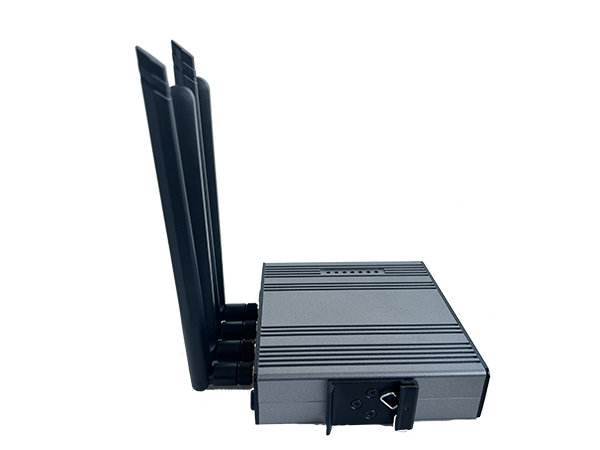

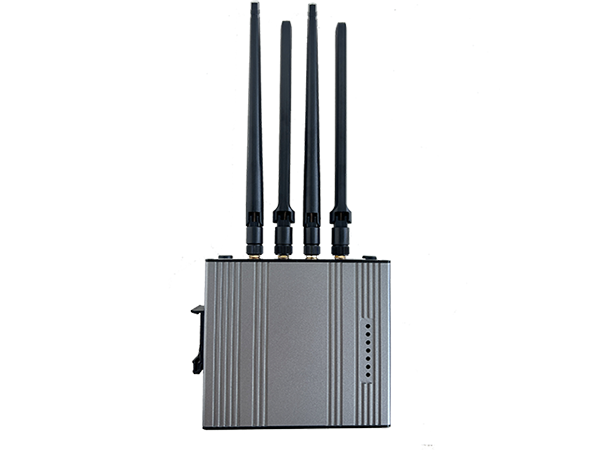

DR5018S, based on the IPQ5018 chipset, is an enterprise-grade wireless module that integrates a BT5.1 radio module, along with 2x2 2.4GHz, 2x2 5GHz, and 2x2 6GHz high-power radio modules. It is specifically designed to provide users with mobile access to high-bandwidth video streaming, voice communication, and data transmission, making it ideal for office environments as well as challenging RF conditions in factories and warehouses.
Parameter | Rating | Unit |
Supply Voltage | 12V-48V(DC Jack) | V |
Operating Temperature Range | -40 70 | ºC |
Storage Temperature Range | -45 to 105 | ºC |
| Operating Humidity Range | 5 ~95 (non-condensing) | % |
Storage Humidity Range | 0 ~ 90 (non-condensing | % |
Symbol | Parameter |
CPU | Qualcomm-Atheros IPQ5018 |
CPU Frequency | Dual-core ARM 64 bit A53 @1.0 GHz processor |
System Memory | 512MB DDR3L 16-bit interface with 32-bit memory bus design |
Ethernet Port | 1 x 1Gbps Ethernet Port,1x2.5Gbps Ethernet Port |
USB | 1x USB2.0 Interface |
SGMII | 1x SGMII Interface |
UART | 1x UART Interface |
Wireless | 2x2 On-board 2.4GHz radio,up to 573Mbps physical Data Rate 2x2 On-board 5GHz radio,up to 2402Mbps physical Data Rate 2x2 On-board 6GHz radio,up to 2402Mbps physical Data Rate |
Channel Spectrum Widths for WLAN | Support 20/40MHz at 2.4GHz Support 20/40/80/160MHz at 5GHz Support 20/40/80/160MHz at 6GHz |
Modulation Techniques | OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
Power | 1)DC Jack: 12V-52V DC power supply 2）POE:Active POE，802.3at/BT,48V passive POE |
Nor Flash | 8 MB |
| Nand Flash | 128 MB |
DDR | 512MB |
Dimension | 12.2x10.5x2.1cm (heat sink included) |
| Certification | FCC/CE/UKCA |
| Surge | IEC61000-4-5、EN61000-4-5、GB/T17626.5 10/700us 6KV |
| P/N | Radio | Frequency | Certification | |
| 1 | DR5018S | 2.4Ghz 5Ghz 6Ghz | 2.5G+1G Ethernet & POE | CE,UKCA,FCC | with GPS |
| 2 | DR5018S-5G | 5Ghz | 1G Ethernet & POE | CE,UKCA,FCC | without GPS |
| 3 | DR5018S-DB | 2.4Ghz 5Ghz | 1G Ethernet & POE | CE,UKCA,FCC | without GPS |
| 4 | DR5018-2G6G | 2.4Ghz 6Ghz | 1G Ethernet & POE | Running | with GPS |
| 5 | DR5018-5G6G | 5Ghz 6Ghz | 1G Ethernet & POE | Running | with GPS |
