DR2G41

Features

Support 4pcs Mini PCIE cards or 4 pcs M.2 cards

RoHS compliance ensure a high level protection of human health and the

environment from risks that can be posed by chemicals


Product Description

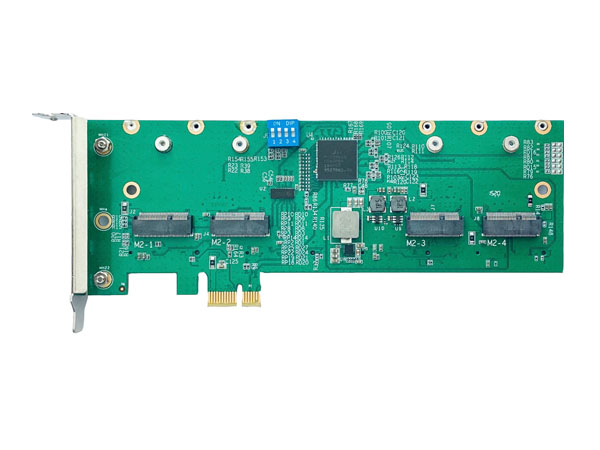

DR2G41 is an adapter card with four MiniPCIe and four M.2 slots. It can be used in a PC with a PCIe slot. Use this new adapter to expand your connectivity and upgrade your device to use the latest miniPCIe and m.2 interface cards. Each comes with both low and regular profile brackets.

Brackets include holes for mounting SMA connectors, or for using as cable exit holes.


    • SPECIFICATIONS
    • SUPPORT&DOWNLOADS


       Specifications


      Parameter

      Rating

      Unit

      Input voltage

      12

      V

      Output Voltage

      3.3

      V

      Operating Temperature

      -40 to +70

      ºC

      Operating Humidity Range

      5 to +95 (non-condensing)

      %

      Storage Humidity Range

      0 to +90 (non-condensing)

      %

      ROHS Compliance

      YES

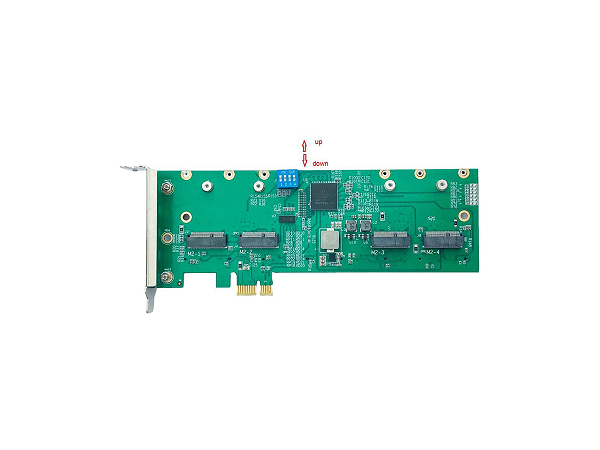

       Switch control instruction


      Switch

      up/down

      Operation

      Switch 1

      up

      M.2-1

      down

      MiniPCIE-1

      Switch 2

      up

      M.2-2

      down

      MiniPCIE-2

      Switch 3

      up

      M.2-3

      down

      MiniPCIE-3

      Switch 4

       N/A

      M.2-4 and MiniPCIE-4 can work simultaneously,not controlled by the switch 4




      Outline


      Parameter

      Rating

      Unit

      Length

      180

      Mm

      Width

      66

      Mm
