Product Description

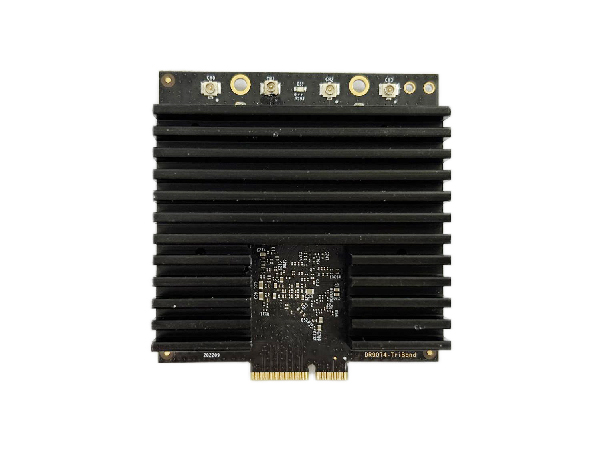

DR9074-Triband based on QCN9024 Chipset is an enterprise wireless module integrated with 4x4 MU-MIMO Dual Band Wireless Module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment.
Parameter | Rating | Unit |
Operating Temperature Range | -20 to 70 | ºC |
Storage Temperature Range | -40 to 90 | ºC |
Operating Humidity Range | 5 to +95 (non-condensing) | % |
Storage Humidity Range | 0 to +90 (non-condensing) | % |
Symbol | Parameter |
Chipset | Qualcomm Atheros QCN9024 |
WLAN Host Interface | PCI Express 3.0 Interface |
System Memory | 2Mbit serial I²C bus EEPROM |
Standard Operating Voltage | 5V |
Operating Systems | QSDK |
Host Interface | M.2 E Key |
Antenna Cable / Port | 4 x ufl Connectors,4T4R |
Frequency Range | 2.412GHz-2.472GHz & 5.18GHz-5.825GHz & 5.925GHz-7.125GHz |
Data Rates | Maxim 23dBm per chain, up to 4804Mbps |
Channel Spectrum Widths | Support 20/40/80/160MHz |
Modulation Techniques | OFDMA: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM; |
Temperature Range | Operating: -20°C to 70°C, Storage: -40°C to 90°C |
Humidity | Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing) |
Certification | TBD |
Reference Design | PN02 .7 |
| Power Consumption | TBD |
Dimensions (WxHxD) | 57mm x 63mm x 6mm |
| Radio TX RX Specifications(5.180GHz- 7.125GHz) |
Mode | Data rate | TX power(dbm) (per chain) | TX power(dbm) (4 chains) | RX Sensitivity(dbm) | Tolerance |
5Ghz 802.11a | 6Mbps | 20 | 26 | -97 | ±2dB |
54Mbps | 19 | 25 | -82 | ±2dB |
5Ghz 802.11n/ac VHT20 | MCS0 | 20 | 26 | -97 | ±2dB |
MCS7 | 17 | 23 | -83 | ±2dB |
MCS8 | 16 | 22 | -81 | ±2dB |
5Ghz 802.11n/ac VHT40 | MCS0 | 19 | 25 | -95 | ±2dB |
MCS7 | 17 | 23 | -80 | ±2dB |
MCS8 | 16 | 22 | -77 | ±2dB |
MCS9 | 15 | 21 | -74 | ±2dB |
5Ghz 802.11n/ac VHT80 | MCS0 | 19 | 25 | -91 | ±2dB |
MCS7 | 17 | 23 | -75 | ±2dB |
MCS8 | 16 | 22 | -72 | ±2dB |
MCS9 | 15 | 21 | -69 | ±2dB |
5GHz 802.11ax HE20 | MCS0 | 19 | 25 | -96 | ±2dB |
MCS9 | 16 | 22 | -77 | ±2dB |
MCS10 | 15 | 21 | -74 | ±2dB |
MCS11 | 14 | 20 | -71 | ±2dB |
5GHz 802.11ax HE40 | MCS0 | 19 | 25 | -94 | ±2dB |
MCS9 | 16 | 22 | -74 | ±2dB |
MCS10 | 15 | 21 | -71 | ±2dB |
MCS11 | 14 | 20 | -68 | ±2dB |
5GHz 802.11ax HE80 | MCS0 | 18 | 24 | -91 | ±2dB |
MCS9 | 15 | 21 | -71 | ±2dB |
MCS10 | 14 | 20 | -69 | ±2dB |
MCS11 | 13 | 19 | -66 | ±2dB |
5GHz 802.11ax HE160 | MCS0 | 18 | 24 | -86 | ±2dB |
MCS9 | 13 | 19 | -65 | ±2dB |
MCS10 | 12 | 18 | -62 | ±2dB |
MCS11 | 11 | 17 | -59 | ±2dB |
| Radio TX RX Specifications(2.412GHz-2.472GHz) |
Mode | Data rate | TX power(dbm) (per chain) | TX power(dbm) (4 chains) | RX Sensitivity(dbm) | Tolerance |
| 2.4Ghz 802.11b | 1Mbps | 20 | 26 | -102 | ±2dB |
| 2Mbps | 20 | 26 | -99 | ±2dB |
| 5.5Mbps | 20 | 26 | -97 | ±2dB |
| 11Mbps | 19 | 25 | -95 | ±2dB |
| 2.4Ghz 802.11g | 6Mbps | 20 | 26 | -97 | ±2dB |
| 54Mbps | 19 | 25 | -83 | ±2dB |
2.4Ghz 802.11n/ac VHT20 | MCS0 | 20 | 26 | -95 | ±2dB |
| MCS7 | 17 | 23 | -78 | ±2dB |
2.4Ghz 802.11n/ac VHT40 | MCS0 | 19 | 25 | -93 | ±2dB |
| MCS7 | 17 | 23 | -73 | ±2dB |
2.4Ghz 802.11ax HE20 | MCS0 | 19 | 25 | -95 | ±2dB |
| MCS8 | 17 | 23 | -77 | ±2dB |
| MCS9 | 16 | 22 | -75 | ±2dB |
| MCS10 | 15 | 21 | -72 | ±2dB |
| MCS11 | 14 | 20 | -69 | ±2dB |
2.4Ghz 802.11ax HE40 | MCS0 | 19 | 25 | -92 | ±2dB |
| MCS8 | 17 | 23 | -75 | ±2dB |
| MCS9 | 16 | 22 | -72 | ±2dB |
| MCS10 | 15 | 21 | -69 | ±2dB |
| MCS11 | 14 | 20 | -66 | ±2dB |
| Pin No. | 51Name | Pin No. | Name |
| 1 | GND | 2 | VDD3P3_ PCIE |
| 3 |
| 4 | VDD3P3_ PCIE |
| 5 | GND | 6 | PCIE_ LED0 |
| 7 | TP19 | 8 | GPIO46 WCI2 UART TXD PCIE |
| 9 |
| 10 | GPIO47_ WCI2_ UART_RXD_ PCIE |
| 11 |
| 12 |
|
| 13 |
| 14 |
|
| 15 | VDD_XPA_ PCIE | 16 | PCIE_ LED1 |
| 17 | VDD_XPA_ PCIE | 18 | GND |
| 19 | VDD_XPA_ PCIE | 20 |
|
| 21 | VDD_XPA_ PCIE | 22 |
|
| 23 | VDD_XPA_ PCIE |
|
|
| 33 | GND | 32 |
|
| 35 | PCIE0 RX0 P | 34 |
|
| 37 | PCIE0_ RX0_ N | 36 |
|
| 39 | GND | 38 | MOD BT STS 2 |
| 41 | PCIE0_TX0_ P | 40 | MOD_WL_ACT_2 |
| 43 | PCIE0_TX0_ N | 42 | PINE_BT_ ACT_2 |
| 45 | GND | 44 | MOD_ BT_ STS |
| 47 | PCIE0 REFCLK P | 46 | MOD WL ACT |
| 49 | PCIE0_ REFCLK_ N | 48 | PINE_ BT_ACT |
| 51 | GND | 50 |
|
| 53 | PCIE0_ CLKREQ _3 P3 _ N | 52 | PCIE0_ PERST_3P3 |
| 55 | PCIE0_WAKE _3 P3_ N | 54 |
|
| 57 | GND | 56 |
|
| 59 | PCIE0 RX1 P | 58 |
|
| 61 | PCIE0_ RX1_ N | 60 |
|
| 63 | GND | 62 |
|
| 65 | PCIE0_TX1_ P | 64 |
|
| 67 | PCIE0_TX1_ N | 66 |
|
| 69 | GND | 68 |
|
| 71 |
| 70 |
|
| 73 |
| 72 | VDD3P3_ PCIE |
| 75 | GND | 74 | VDD3P3_ PCIE |
